| Brand Name : | KANGBO |
| Model Number : | Construction Material Hoist Rack and Pinion SC200BG MP-B11 SC200/200BG MP-B12 |
| Certification : | TUV, CCC |
| Price : | Negotiate in USD |
| Payment Terms : | T/T, L/C |
| Supply Ability : | 150 sets per month |
| Delivery Time : | 25-30 days |
Intelligent Elevator Control 0–60 M/Min Man And Material Hoist
Man And Material Hoist Introduction

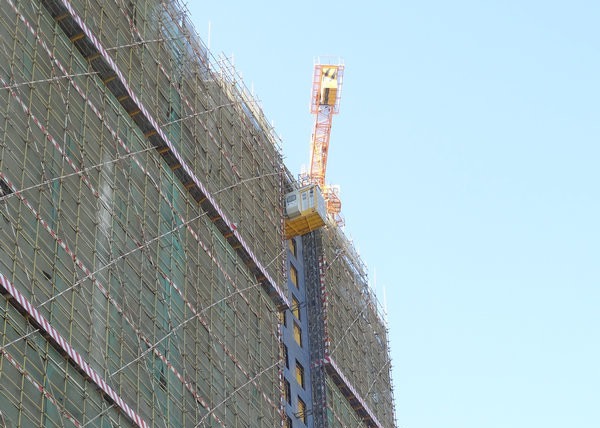

The Man And Material Hoist can be widely used in industrial and civilian construction, bridge, under well, big chimney as well as shipping industry to carry people and materials. As permanent or semi-permanent equipment, elevator can be used in different sites such as warehouse, high tower, etc.
With the advantages of reliable performance, safety, easy carrying, high adaptability, it can reduce operators' work intensity.
With many advanced technology integrity, strict control on each making process, high ratio of price and quality, UNIQUE building hoist has become a symbol of lifter with high quality and excellent after-sales service.
Man And Material Hoist Optional Configuration
Rack and pinion elevator cage flap door as loading/unloading ramp.
Sliding Contact Line (Integrated Conductive Rail or Busbar)
specially for rack and pinion lifts.
An intelligent elevator control system, Multi-function Control
System, with functions of fault detect, display and alarm, and
automatic cage landing/stop and floor selector, is available.
Automatic greasing machine for rack and pinion elevator is
availble.
Man And Material Hoist Technical Data
| Item & Article No. | SC200BG, MP-B11; SC200/200BZ, MP-B12 |
| Payload Capacity | 2,000 KG per Cage |
| Lifting Speed | 0–60 m/min. |
| Max. Lifting Height | 250/400 m* |
| Cage Width (Internal) | 1.5 m |
| Cage Length (Internal) | 3.2 m |
| Cage Height (Internal) | 2.35 m |
| Cage Doors | 3 Doors, Entry Door + Exit Door + Side Door |
| Drive Unit | VFD (Variable Frequency Drive) |
| Engine power per cage | 3x15 KW |
| Gearbox | Helical Reducer |
| Safety Device Type | Centrifugal Brake |
| Power Supply Range | 380–500 V, 50 or 60 Hz, 3 Phase |
| Mast Section | Square Column 650*650*1508 mm with Bolted Rack |
| Rack module | 8 |
| * Increased lifting height on request. 250 m with step-up transformer only. 400 m with step-up/step-down transformer. | |
|
|
